Blister Packing Machine (Alu-Alu Packing Machine)

Alu Alu blister packing machine is a type of cold-forming blister packaging machine, that is mainly used for tablet and capsule packaging. Chin Yi is designed to form various types of blister packs with and without perforation, our blister-packing machine model includes DK-PS 2000A / 3000A / 4000A, In addition, we also provide customized services, if you need to Alu Alu packing machine, welcome contact us!

Blister Packaging Machine (Alu-Alu Packing Machine)
ALU-ALU Packing Sample
ALU-ALU Packing Sample

ALU-ALU Form Packing Machine DK-PS 2000A/3000A/4000A

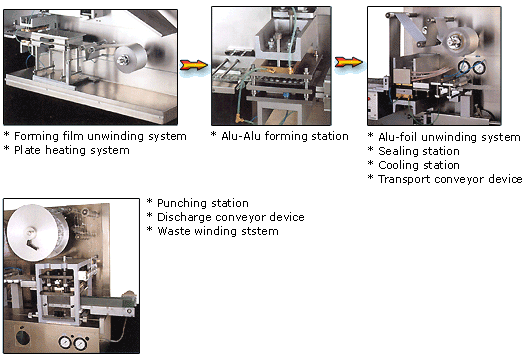

PROCEDURE:

  • Forming film of reel support with automatic unwinding system.
  • Plate heating system. Lift-off on machine stop.
  • Compressed air forming station.
  • Filling device (Automatic or manual).
  • Coverfoil of reel support with automatic unwinding system.
  • Guide rails.
  • Sealing station.
  • Cooling station.
  • Punching station.
  • Waste winding unit.

Advantages of the platen sealing system:

  • Sufficient process time.
  • Constant and relatively low sealing temperature over the full sealing.
  • Low energy cost.
  • Flexibility to seal a range of lid materials.
  • Proportional heat control with only +/- 5°C variation.
  • Uniform pressure distribution over the full platen surface.
  • Heat transfer to product is avoided.
  • Absorption of sealing load within the station.
  • Separation of indexing and sealing functions.

OPTIONAL ACCESSORIES:

  • Slitter station or perforation station.
  • Auto feeding device for capsule with orientation.
  • Vibrator auto feeding device for Tablet/Caplet.
  • Discharge conveyor device.
  • Safety guard.
  • Missing check.
  • Printed mark controller.

Mould

* Upper & Lower forming tool.
*Slitter tool.
* Perforation tool.

Feed Systems

* Auto-feeding device for capsule with orientation.
* Vibrator for Tab / caplet Auto feeding device.
* ALU-ALU Auto feeding device..
*Missing check device
* Hopper for pill / sugar coating tab products.
* Hopper for manual feeding products.
* Bursh
DK-PS 2000A
DK-PS 3000A
DK-PS 4000A
Formed area available
(max mm)
100(W)x120(L)
110(W)x150(L)
110(W)x190(L)
Form film thickness
(mm)
250-350 micron
250-350 micron
250-350 micron
Lid foil width
(max mm)
124
154
195
Forming depth
(mm)
13
(or as require)
13
(or as require)
13
(or as require)
Reel diameter
Film (max mm)
foil (max mm)
core (mm)

400
240
70-76

400
240
70-76

400
240
70-76
Conveying length
(max mm)
112
112
112
Capacity / Strokes
(max)
50
50
50
Electrical Connection
220V,380V,
440V50 Hz
or 60 Hz
220V,380V,
440V50 Hz
or 60 Hz
220V,380V,
440V50 Hz
or 60 Hz
Compressed
air Consumption
36.9-52.4 CFM
at 7Kg/Cm2
G1045-1484 L/Min
36.9-52.4 CFM
at 7Kg/Cm2
G1045-1484 L/Min
52.4-82.4 CFM
at 7Kg/Cm2
G1484-2334 L/Min
Cooling water
Consumption
0.06m3-0.1m3
/ Hr15oC-20oC
0.06m3-0.1m3
/ Hr15oC-20oC
0.18m3-0.3m3
/ Hr15oC-20oC
Floor space
(approx mm)
3260Lx800W
x1550H
3260Lx800W
x1550H
3260Lx800W
x1550H
MAIN MOTOR,
HEATER
1/4HP, 3-4W
1/4HP, 4-6W
1/4HP, 5-7W
Shipping Data: G.W. Kg

(approx)		 N.W. Kg
Cu-Ft

1000
700
190
1100
800
200
1200
900
200
